  Brimar DD (Dual Duty) Range

The Brimar Dual Duty range of one piece tanks provide an effective and simple solution to providing stand alone pump stations. The Dual Duty tanks are designed to provide both a weatherproof and IP55 rated housing section and a fully compliant storage tank in a single piece unit.

The Dual Duty range is designed to withstand the most punishing of climates and can be customised to suit almost any application. The units are available in almost any size from our standard one piece tank range; alternatively a bespoke unit can be manufactured to suit your individual requirements.

The unique design of the Dual Duty range units allow for both a tank and pump housing to be delivered to site in a single operation. The units are suitable for positioning on to a pre-prepared concrete base, or alternatively can be fitted out with a reinforced skid for even greater flexibility.

The units are lightweight and can easily be handled by either forklift or HI-AB, this would be ideal for delivery to your works for fitting out which can then be easily forwarded on to site fully furnished with your pump set safely housed inside.

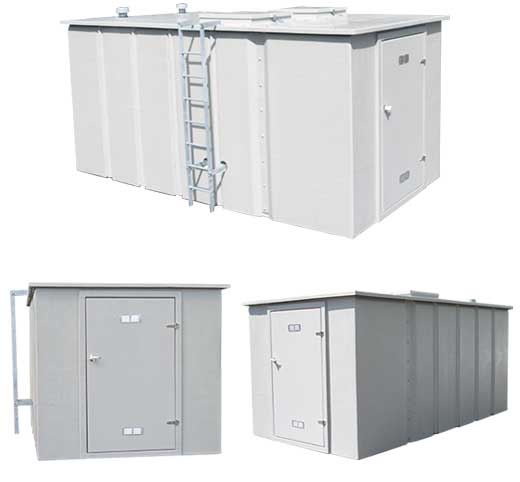

Brimar Dual Duty Tanks
Sample Sizes:
DD1K DD2K DD3K DD4K DD6K DD8K
DD12K DD14K DD16K DD18K DD20K

Features & Benefits:
  • Available in an extensive size range - over 100 standard sizes – 500 to 20,000 litres and up to 60,000 litres to order.
  • Suitable for potable water, foodstuffs, effluent and chemical solutions.
  • Factory fitted insulation (CFC and HCFC free) as standard.
  • Comply fully with water regulations and British Standards.
  • Universally accepted by architects, consulting engineers and the building services industry.
  • Accepted by MOD, Foreign Office, Home Office, NRA, water companies, DEFRA etc.
  • Designed to comply with the requirements of
    BS EN 13280: 2001 (BS 7491 Parts 1,2 and 3).
  • Suitable for internal or external applications (unaffected by sunlight).
  • Internal metallic components in stainless steel to current European standard – no corrosion.
  • Exposed external reinforcements to current European standards.
  • Structural GRP laminate with a high glass content, quality polyester resin and no fillers.
  • Internal Gelcoat surface - excellent resistance to algae growth.
  • Extensive range of factory-fitted connections.
  • A superior weather resistant external finish in a range colours (BS or RAL).



DD05K
L (mm)
W (mm)
H (mm)
Overall size
1660
1160
1030
Internal housing size
1000
1000
1000
Internal tank size
500
1000
1000
Nominal capacity
500 litres
Fittings

1 no. single door complete with barrel lock

1 no. louvre vent

1 no. float valve access panel

1 no. screened breather vent

Connections to suit application as required
DD1K
L (mm)
W (mm)
H (mm)
Overall size
2160
1160
1030
Internal housing size
1000
1000
1000
Internal tank size
1000
1000
1000
Nominal capacity
1,000 litres
Fittings

1 no. single door complete with barrel lock

1 no. louvre vent

1 no. hinged & hasped access manway

1 no. screened breather vent

Connections to suit application as required
DD2K
L (mm)
W (mm)
H (mm)
Overall size
3160
1160
1030
Internal housing size
1000
1000
1000
Internal tank size
2000
1000
1000
Nominal capacity
2,000 litres
Fittings

1 no. single door complete with barrel lock

1 no. louvre vent

1 no. hinged & hasped access manway

1 no. screened breather vent

Connections to suit application as required
DD3K
L (mm)
W (mm)
H (mm)
Overall size
2160
2160
1530
Internal housing size
1000
1000
1500
Internal tank size
2000
1000
1500
Nominal capacity
3,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

Connections to suit application as required
DD4K
L (mm)
W (mm)
H (mm)
Overall size
2160
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
1000
2000
2000
Nominal capacity
4,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD6K
L (mm)
W (mm)
H (mm)
Overall size
2660
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
1500
2000
2000
Nominal capacity
6,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD8K
L (mm)
W (mm)
H (mm)
Overall size
3160
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
2000
2000
2000
Nominal capacity
8,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD10K
L (mm)
W (mm)
H (mm)
Overall size
3660
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
2500
2000
2000
Nominal capacity
10,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD12K
L (mm)
W (mm)
H (mm)
Overall size
4160
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
3000
2000
2000
Nominal capacity
12,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD14K
L (mm)
W (mm)
H (mm)
Overall size
4660
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
3500
2000
2000
Nominal capacity
14,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD16K
L (mm)
W (mm)
H (mm)
Overall size
5160
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
4000
2000
2000
Nominal capacity
16,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD18K
L (mm)
W (mm)
H (mm)
Overall size
5660
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
4500
2000
2000
Nominal capacity
18,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
DD20K
L (mm)
W (mm)
H (mm)
Overall size
6160
2160
2030
Internal housing size
1000
2000
2000
Internal tank size
5000
2000
2000
Nominal capacity
20,000 litres
Fittings

1 no. single door complete with barrel lock

2 no. louvre vents

1 no. hinged & hasped access manway

1 no. screened breather vent

1 no. S/S internal ladder

Connections to suit application as required
